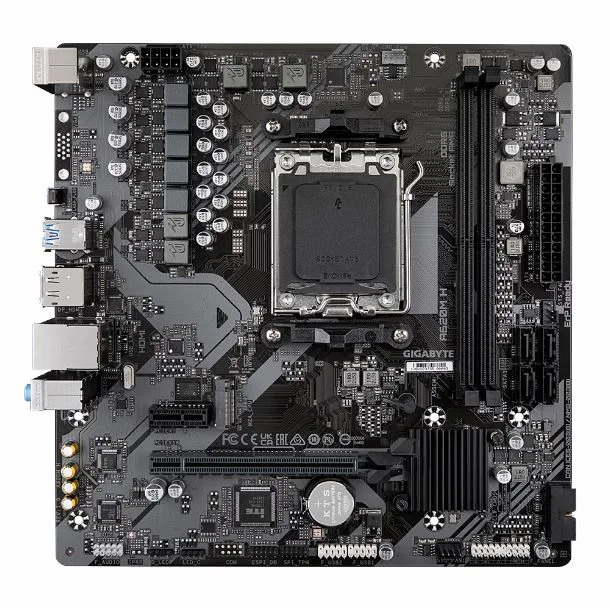

A620M H 1.2
Procesador
AMD Socket AM5- support for: AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors
(Please refer CPU Support List for more information.)
Chipset
AMD A620
Memoria
Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types- data rate (speed)- and number of DRAM modules- please refer to Memory Support List for more information.)
Gráfica Integrada
Integrated Graphics Processor:
1 x DisplayPort- supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.
1 x HDMI port- supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)

Support for up to 3 displays at the same time
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio- access the audio software for audio settings.
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Zócalos de Expansión
1 x PCI Express x16 slot- integrated in the CPU:
AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
1 x PCI Express x1 slot- supporting PCIe 3.0 and running at x1
Interfaz de almacenamiento
1 x M.2 connector- integrated in the CPU- supporting Socket 3- M key- type 2580 SSDs:
AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0- RAID 1- and RAID 10 support for NVMe SSD storage devices
RAID 0- RAID 1- and RAID 10 support for SATA storage devices
USB
CPU:
2 x USB 3.2 Gen 1 ports on the back panel
1 x USB 2.0/1.1 port on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
7 x USB 2.0/1.1 ports (3 ports on the back panel- 4 ports available through the internal USB headers)
Conectores Internos E/S
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Clear CMOS jumper

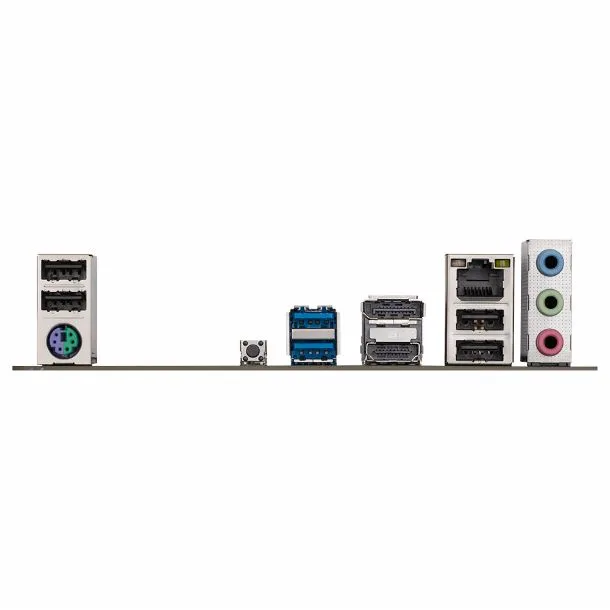

Panel E/S Trasero
4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x Q-Flash Plus button
2 x USB 3.2 Gen 1 ports
1 x DisplayPort
1 x HDMI port
1 x RJ-45 port
3 x audio jacks
Controlador E/S
iTE® I/O Controller Chip
Monitorización Hardware
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a- DMI 2.7- WfM 2.0- SM BIOS 2.7- ACPI 5.0
Otras Características
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash Plus
Support for Q-Flash
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Sistema Operativo
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Formato
Micro ATX Form Factor; 23.0cm x 22.5c
