Procesador
LGA1700 socket: Support for the 14th- 13th- and 12th Generation Intel® Core™- Pentium® Gold and Celeron® Processors
* Please refer to CPU Support List for more information.
L3 cache varies with CPU
Chipset
Intel® H610 Express Chipset
Memoria
14th and 13th Generation Intel® Core™ i9/i7 Pocessors:
- Support for DDR5 5600/5200/4800/4400 MT/s memory modules
13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™- Pentium® Gold and Celeron® Processors:
- Support for DDR5 4800/4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types- data rate (speed)- and number of DRAM modules- please refer to Memory Support List on GIGABYTEs website for more information.)
Gráficos Integrados
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port- supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.


- 1 x DisplayPort- supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3


(Graphics specifications may vary depending on CPU support.)
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio- access the audio software for audio settings.

LAN
Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Puertos de Expansión
CPU:
- 1 x PCI Express x16 slot- supporting PCIe 4.0 and running at x16
Chipset:
- 1 x PCI Express x1 slot- supporting PCIe 3.0 and running at x1
Interfaz de Almacenamiento
Chipset:
- 1 x M.2 connector (Socket 3- M key- type 2280/2260 PCIe 3.0 x4/x2 SSD support)
- 2 x SATA 6Gb/s connectors
USB
Chipset:
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel- 2 ports available through the internal USB header)
- 6 x USB 2.0/1.1 ports (4 ports on the back panel- 2 ports available through the internal USB header)
Conectores Internos de E/S
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x Clear CMOS jumper

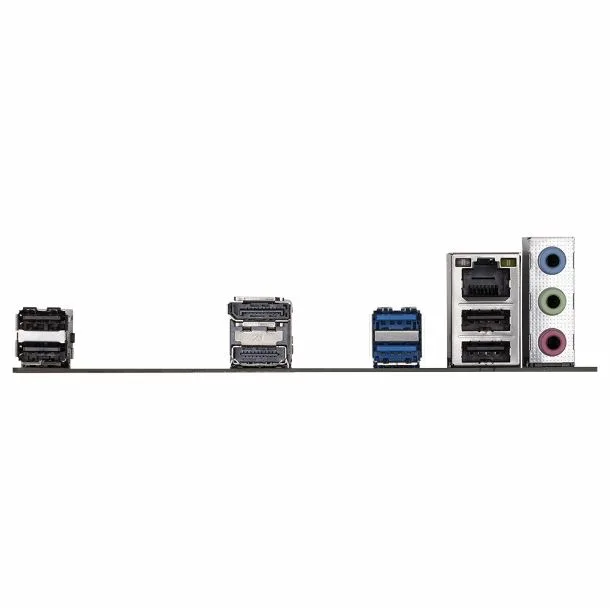

Conectores del Panel Trasero
1 x HDMI port
1 x DisplayPort
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Controlador de E/S
iTE® I/O Controller Chip
Monitorización H/W
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.

BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a- DMI 2.7- WfM 2.0- SM BIOS 2.7- ACPI 5.0
Características Únicas
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


- @BIOS
- EasyTune
- Smart Backup
- System Information Viewer
Support for Q-Flash
Software Incluido
Norton® Internet Security (OEM version)
LAN bandwidth management software
Sistema Operativo
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Diseño
Micro ATX Form Factor; 22.6cm x 18.5cm
